介面 |
- Memory card mode
- I/O mode
- True IDE mode (PIO Mode-4/Multi-word DMA Mode II) |
|
作業伏特數 |
- Dual Voltage, 5.0V or 3.3V |
|
尺寸 |
- CF Type I, 36.4mm*42.8mm*3.3mm |
|
穩定性 |
- Built-in ECC corrects 3 random bytes error per 512 byte sector
- Implement dynamic wear-leveling algorithms to substantially
increase the longevity of flash media |
|
傳輸率 |

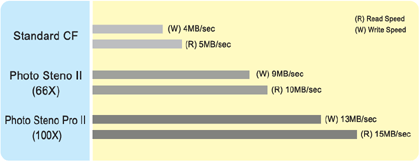

- Multi-taking technology enables fast sustained write speed up
to 9 MB/sec (under DMA mode II)
- Fast sustained read speed up to 10 MB/sec (under DMA mode II) |
|
運作溫度 |
- 0℃ to 70℃ for commercial operation
-
-40℃ to + 85℃ for industrial operation |
|
電源 |
- Immediate disabling of unused circuitry |
|
操作電流 |
- Active more: 25mA/35mA/ (3.3V/5.0V) (typical)
- Sleep mode: 40μA/50μA (3.3V/5.0V) (typical) |
|
容量 |
- 256MB, 512 MB, 1GB, 2GB, 4GB |
